Our Aluminum Hydroxide (ATH) filler powder is a high-performance, halogen-free flame retardant and smoke suppressant, engineered for advanced polymer and composite applications.
China Manufacturer// Aluminum Hydroxide //Zibo Joyreach New Materials Co.,Ltd
1-100um,D50 could be costomized with high and middle whiteness grade.
Product Description
Technical Date Sheet:
Molecular Formula: Al(OH)3
H.S. CODE: 2818 3000
CAS No.:21645-51-2
EINECS No.:244-492-7

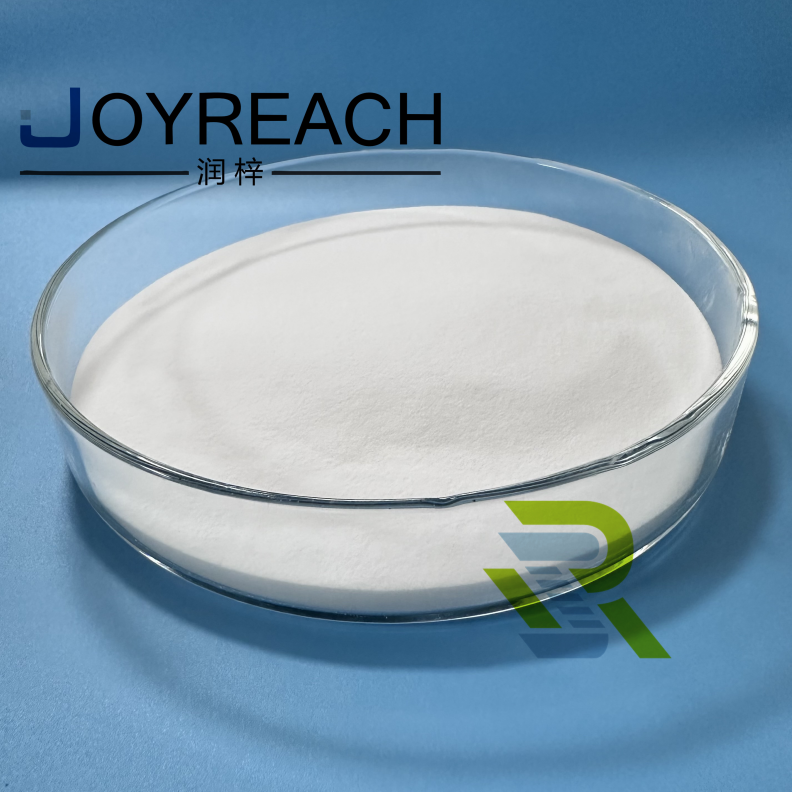

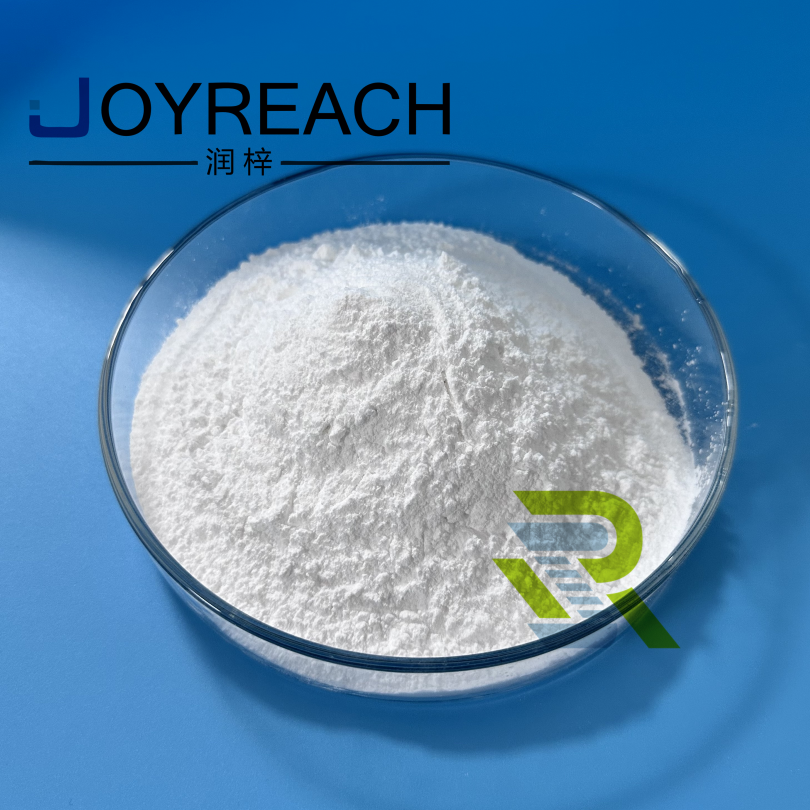

Aluminum hydroxide, a white powder, serves as both a flame retardant and filler. In resin solid surface applications, it exhibits characteristics such as white crystalline structure, non-toxicity, tastelessness, excellent flowability, low oil absorption, minimal iron content, well-defined particle morphology, uniform particle size distribution, low impurity levels, robust stability, high whiteness, and superior dispersibility.
Product Parameters
1.Superfine powder Aluminum Hydroxide
| Technical Index | Aluminum Hydroxide/Alumina Trihydrate/Aluminum Trihydrate | |||
| Type | H-WF-1 | H-WF-5 | H-WF-8 | H-WF-10 |
| AL(OH)3 %≥ | 99.7 | 99.6 | 99.6 | 99.6 |
| SiO2 %≤ | 0.01 | 0.02 | 0.02 | 0.02 |
| Fe2O3 %≤ | 0.008 | 0.008 | 0.008 | 0.008 |
| Na2O %≤ | 0.28 | 0.3 | 0.3 | 0.3 |
| Moisture %≤ | 0.2 | 0.2 | 0.2 | 0.2 |
| Particle Size D50(μm) | 1.2-1.8 | 5±1 | 8±1 | 10±1 |
| Whiteness % ≥ | 99 | 99 | 98.6 | 98.6 |
| Oil Absorption(ml/100g)≤ | 31-33 | 29-31 | 27-29 | 27-29 |
2.Fine powder Aluminum Hydroxide
| Technical Index | Aluminum Hydroxide/Alumina Trihydrate/Aluminum Trihydrate | |||||
| Type | H-WF-14 | H-WF-25MSP | H-WF-25 | H-WF-50 | H-WF-75 | H-WF-90 |
| AL(OH)3 %≥ | 99.6 | 99.6 | 99.6 | 99.6 | 99.6 | 99.6 |
| SiO2 %≤ | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Fe2O3 %≤ | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 |
| Na2O %≤ | 0.3 | 0.25 | 0.25 | 0.25 | 0.25 | 0.0.25 |
| Moisture %≤ | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Particle Size D50(μm) | 14±2 | 21±5 | 25±5 | 50±5 | 80±5 | 90±15 |
| Whiteness % ≥ | 98 | 98 | 97 | 97 | 96 | 95 |
| Oil Absorption (ml/100g)≤ | 24-26 | 18-20 | 22-24 | 17-19 | 18-20 | 18-20 |
Aluminum Hydroxide 14-100um
14-25 microns are used for artificial plates, artificial stones, thermal insulation materials, acrylic composites, etc;
The 50-90 micron artificial stone, artificial board, agate products, thermal insulation materials, various glasses, composite materials, etc.
Aluminum Hydroxide 1-10um
1. Micro powder 1-5 micron series is used for wire, cable, paper, copper clad plate, silicone rubber, foam insulation materials, paper making, PVC, etc;
2. The 8-10 micron series is used for fiberglass, insulation boards, flame retardants, conveyor belts, artificial stones, carpets, BMC/SMC, plastics, epoxy resin sealing materials, etc;
Kindly leave your requirement of product with your company info,we will get back asap.
If any urgent need,please call us freely:+86 15094882506
