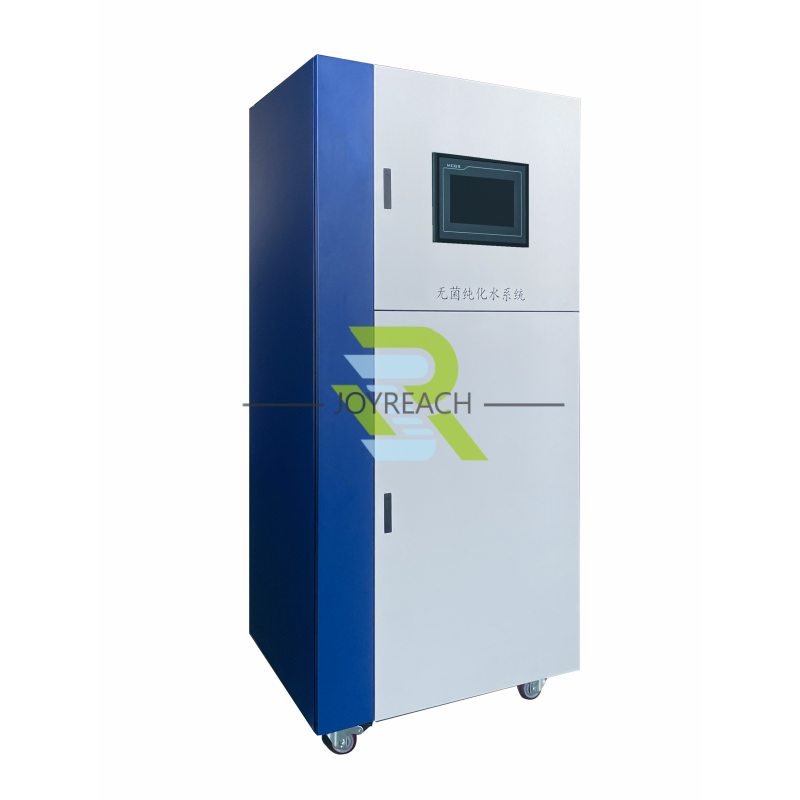

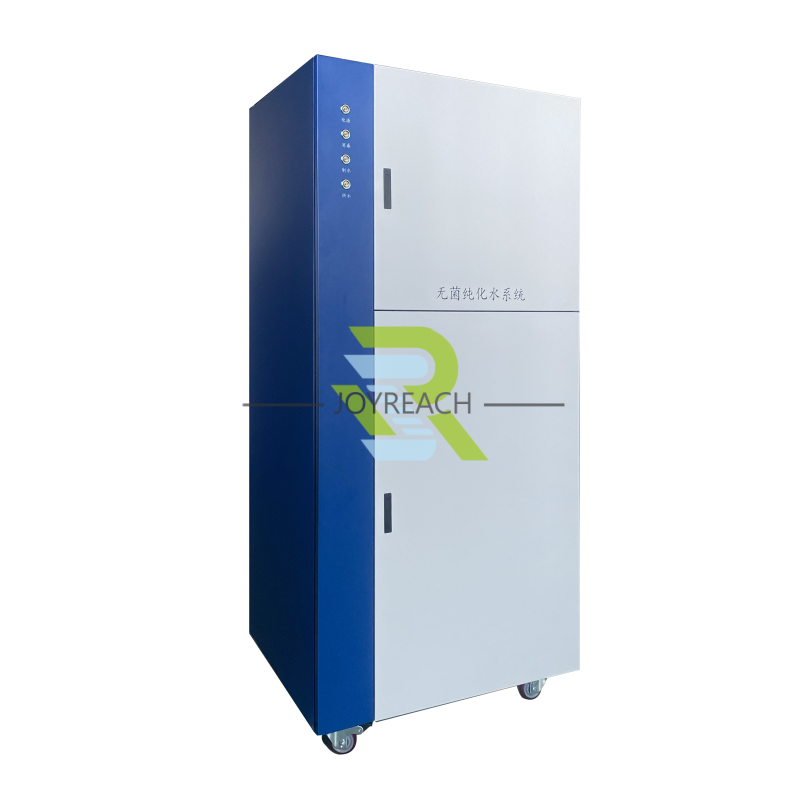

Cssd Pure Water Reverse Osmosis Machine

HHRO Pure Water Treatment system is designed to supply purified water that meets the rigorous quality requirements of multiple hospital departments. Its applications span CSSD washing and sterilization, operating room procedures, stomatology, and endoscopic cleaning—delivering consistent water purity that supports clinical efficacy and extends the service life of medical equipment.

Technology process:

Raw Water Pump → Quartz Sand Filter → Activated Carbon Filter → Water Softener → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO System → 2nd Stage High-Pressure Pump → 2nd Stage RO System → UV Sterilizer → Pure Water(if needed → EDI Ultrapure Water System → Ultrapure Water).

*Note: The flowchart can be customized based on specific application requirements and source water conditions.

*The treatment process can be customized to meet specific client requirements and source water conditions.

>>>Main Characteristics:
1. Product water quality complies with national standards for disinfection supply centers.
2. Fully automatic pretreatment system with automatic cleaning and regeneration functions.
3. Independent water supply lines for soft water and pure water, enabling multi-point distribution.
4. PLC automatic program control for unattended operation.
5. Comprehensive protection system including high/low pressure protection for water inlet.
6. LCD touch screen with bilingual menu (Chinese/English).
7. RO membrane features pulse automatic cleaning function.
8. Compact carbon steel cabinet with simple structure and small footprint.
9. Compatible with all major brands of cleaning and disinfection equipment.
10. Online monitoring and display of water quality parameters.
11. Constant pressure water supply system for stable operation.

12. Energy-saving and water-saving design.

>>>More Knowledge about Parts:
1.Silica Sand Filter - Removes suspended solids and particulate matter, effectively reducing water turbidity.
2.Activated Carbon Filter - Eliminates color, odor, and a significant portion of organic contaminants and biological organisms.
3.Sodium Ion Exchanger (Water Softener) - Removes calcium and magnesium ions through ion exchange process, effectively softening the water.
4.Precision (Security) Filter - Ensures that particle size entering the reverse osmosis membrane is less than 0.1 micron, protecting downstream components.
5. Reverse Osmosis (RO) System - Reverse osmosis uses a semi-permeable membrane to remove dissolved salts, colloids, microorganisms, and organic matter under pressure. It removes over 99% of contaminants, with advantages including low energy consumption, simple operation, and high effluent quality.
6. UV Sterilizer - Uses ultraviolet light to inactivate bacteria and microorganisms that may pass through the RO membrane.

7. Ozone Sterilizer - Produces ozone to eliminate microorganisms that survive UV treatment.
